Atelier d’Usinage Arvida Inc.

Large & Heavy Capacity Machining Facility

LARGE & HEAVY CAPACITY MACHINING FACILITY FEATURING: COMET (1993) MB-1130A, 4.33" table type horizontal boring mill; GINGRAS hydraulic combination press brake/shear with ½" x 10' capacity and assortment of dies; BOEHRINGER 4' x 30' planer mill with 20HP vertical milling head; C-TEK (2011) KM180D large capacity & high speed CNC vertical machining center; C-TEK KM150 CNC vertical machining center; HYD-MECH H-22A horizontal band saw with hydraulic feed; HYD-MECH (2004) H-20A horizontal mitre band saw with hydraulic feed; CY-DRUMMOND (2006) 25" x 160" engine lathe with 6" spindle bore; CY-DRUMMOND (2000) 20" x 80" engine lathe; LEONARD 42" x 180" engine lathe; SUNRISE (1999) 77 ton hydraulic ironworker; ROUNDO PS205 plate rolls with 5/16" capacity; ML 100 ton hydraulic shop press; TOS FA5B-U horizontal milling machine; JAESPA AS10H vertical band saw; LINCOLN PRECISION TIG 275 TIG welder; THERMAL DYNAMICS plasma cutter; ERLO geared head drill; ASSORTMENT of NEDERMAN snorkel arms with blower units; INGERSOLL RAND 50HP air compressor; TCM 6000lb LPG forklift; DODGE (2008) RAM 5500ST flatbed pick-up truck; CHEVROLET 3500 flatbed pick-up truck; INTERNATIONAL (2006) 7600 box truck with only 330,000KM; PRO-ACTION 20 ton x 50' double girder bridge crane; (3) DEMAG 5 ton x 50' single girder bridge cranes; (20+) jib arms and hoists; HUGE ASSORTMENT OF RAW MATERIAL, inspection equipment, welders & welding equipment, cylindrical and plain surface grinders, tool room lathes, precision machine accessories, angle plates, tool holders, saws, milling machines, adjustable racking, air compressors, LISTA tool cabinets, HEAVY steel set up tables, office furniture & equipment and MUCH MORE!

MACHINE SHOP

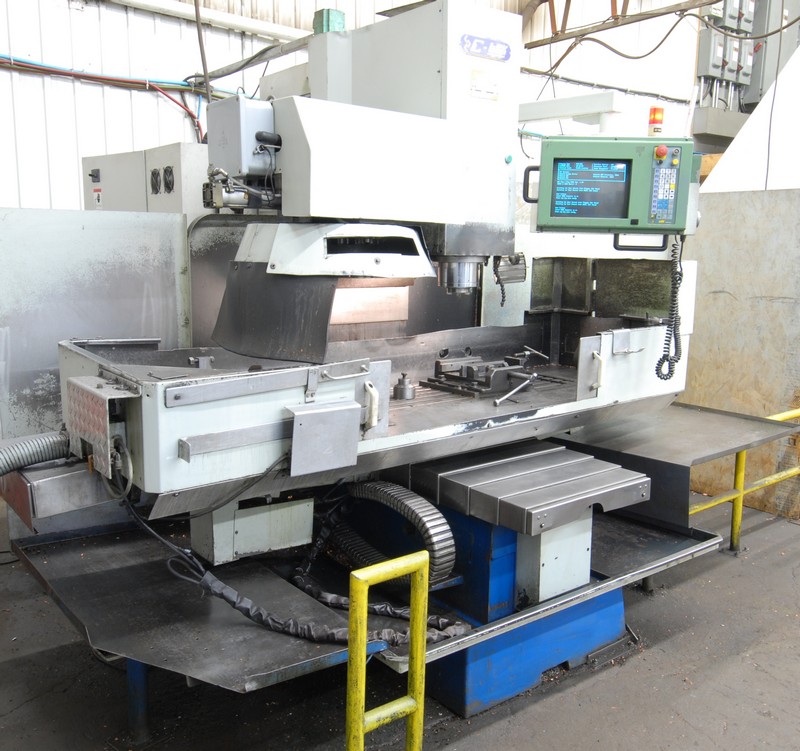

• C-TEK  (2011) KM-180D CNC vertical machining center with CNT 820 PC based CNC control, 18"x59" table, travels X-70.75", Y-25.5", Z-24.5", speeds to 10000 rpm, CAT40 taper, 15 hp, 24 station ATC, spindle chiller, coolant, chip auger, s/n n/a
• C-TEK  (2011) KM-150 CNC vertical machining center with CNT 820 PC based CNC control, 17"x63" table, travels X-59", Y-25.5", Z-24.5", speeds to 10000 rpm, CAT40 taper, 15 hp, 18 station ATC, spindle chiller, coolant, chip tray, s/n n/a

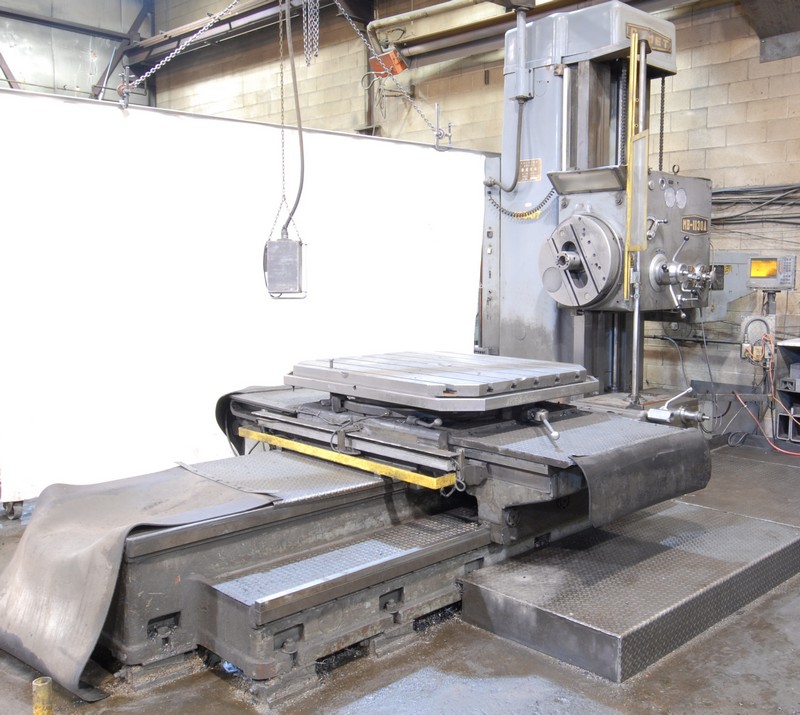

• COMET MB-1130A table type horizontal boring mill with 5" spindle, 50"x60" rotary table, travels 60" longitudinal, 60" cross, 50" vertical, speeds to 900 rpm, #50 spindle taper, coolant, 3 axis DRO, pendant control, s/n n/a

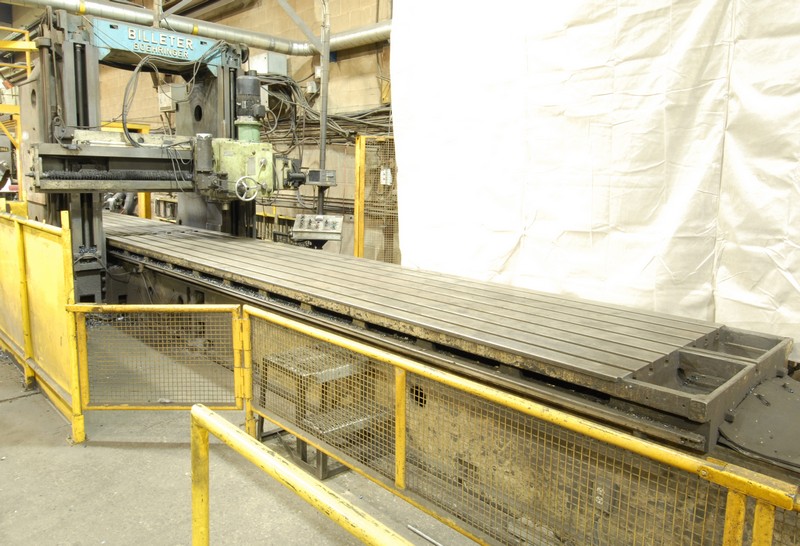

• BILLETER BOHRINGER planer mill with 47"x440" table, 50" between housings, 48" max height under the rail, retrofit TITAN FRES push button control and 13 hp milling head, s/n n/a

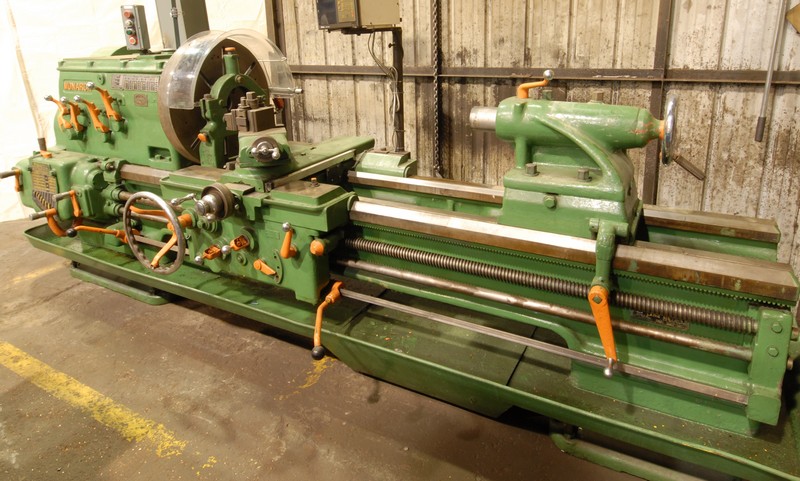

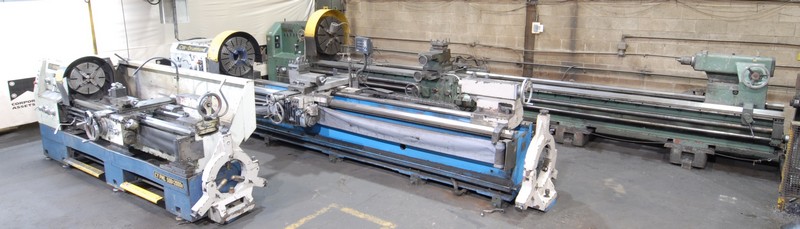

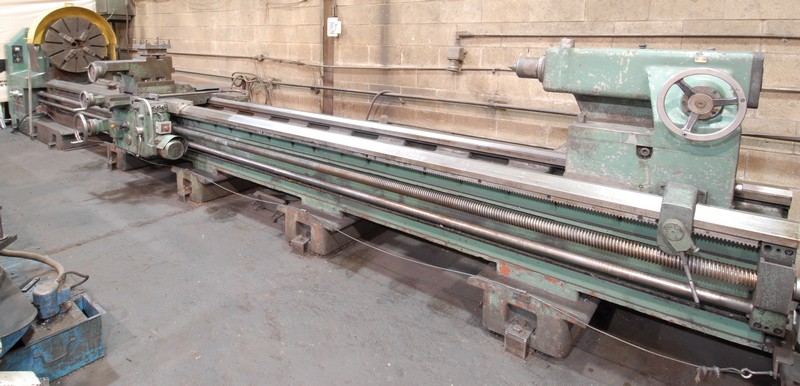

• SAFOP LEONARD 40-510 engine lathe with 44" swing, 257" centers, 6.5" spindle bore, speeds to 340 rpm, 31" 4-jaw chuck, in/mm threading, s/n 26109

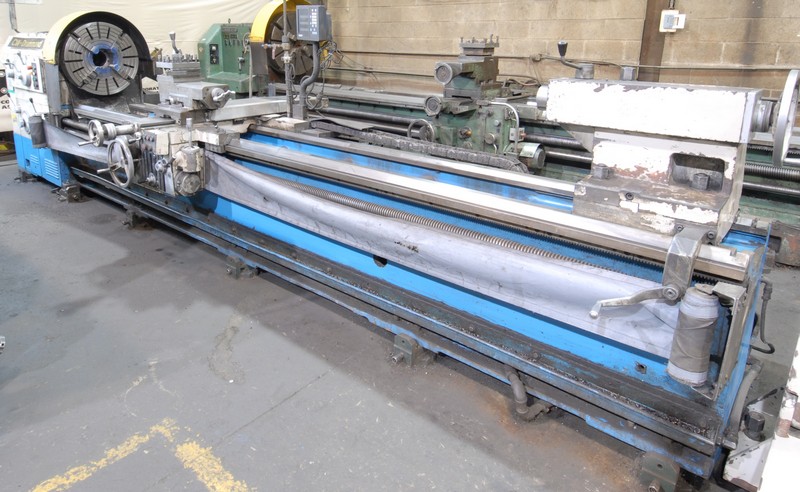

• CW DRUMMOND (2006) CW6280C gap bed engine lathe with 34" swing over bed, 45" swing in gap, 161"centers, 5.25" spindle bore, speeds to 720 rpm, FAGORT 3 axis DRO, coolant, in/mm threading, s/n GM06020806K

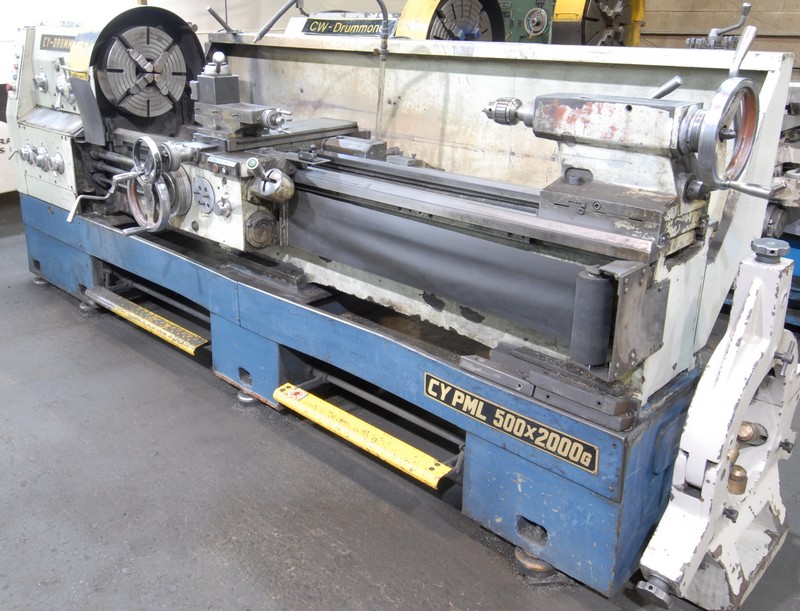

• CY DRUMMOND CYPM C500X2000G gap bed engine lathe with 20" swing over bed, 30" swing in gap, 78" centers, 4" spindle bore, speeds to 1120 rpm, 15" 4-jaw chuck, coolant, in/mm threading, s/n 10051233
• MONARCH 20CM engine lathe with 27.5" swing, 72" centers, 2.25" spindle, speeds to 400 rpm, MITUTOYO 2 axis DRO, steady rest, safety guards and interlocks, s/n n/a

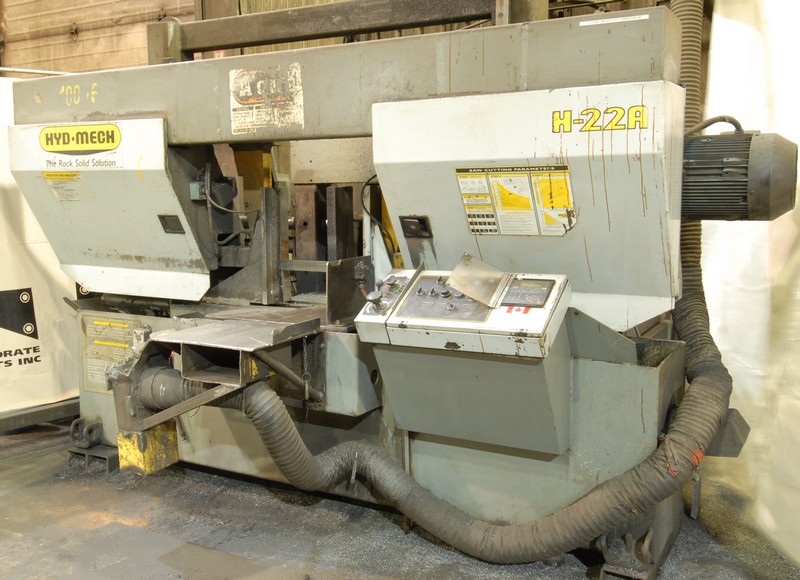

• HYD MECH H-22A dual post type automatic horizontal band saw with HYD MECH E200 digital microprocessor control, 20"x22" cap, 10 hp, coolant, hydraulic feed, s/n C0803121SAM

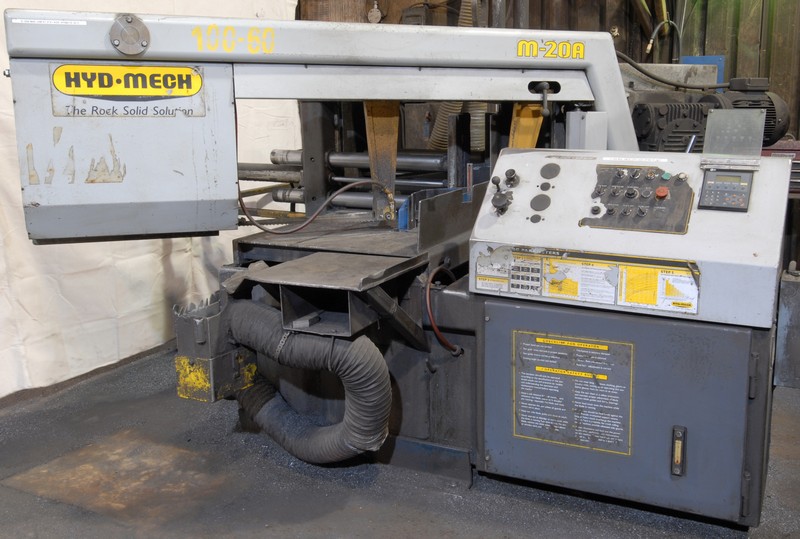

• HYD MECH M-20A scissor type automatic horizontal band saw with HYD MECH E200 digital microprocessor control, 20"x30" @ 90° cap, 60° to 90° miter cap, 10 hp, coolant, hydraulic feed, s/n T0404379
• JAESPA AS10H vertical metal cutting band saw with 39" throat, 10" max work piece height cap, blade welder and grinder, s/n n/a
• CLAUSING START RITE 7" portable horizontal band saw, s/n 203193
• DEWALT 14" radial arm saw, s/n n/a

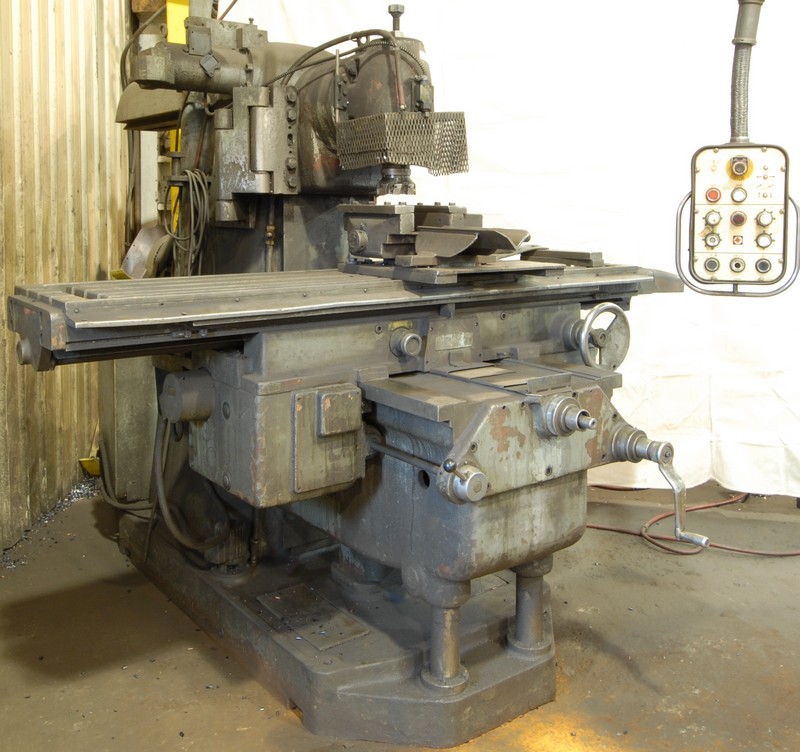

• TOS KURIM FA5B-V universal milling machine with 18"x79" table, speeds to 1400 rpm, 20 hp, #50 taper, over arm universal milling head, pendant control, ACURITE 3 axis DRO, s/n 76518
• TOS KURIM FA5B-H universal milling machine with 18"x79" table, speeds to 1400 rpm, 20 hp, #50 taper, over arm universal milling head, pendant control, s/n 25855
• RAMBAUDI RAM MILL vertical milling machine with 20"x63" table, speeds to 2400 rpm, #50 taper, s/n 76827
• HERBERT #47V vertical milling machine, s/n n/a
• FREJOTH (2008) 25050A gear head drill with 15"x20" power elevation table, speeds to 2400 rpm, DRO, s/n n/a

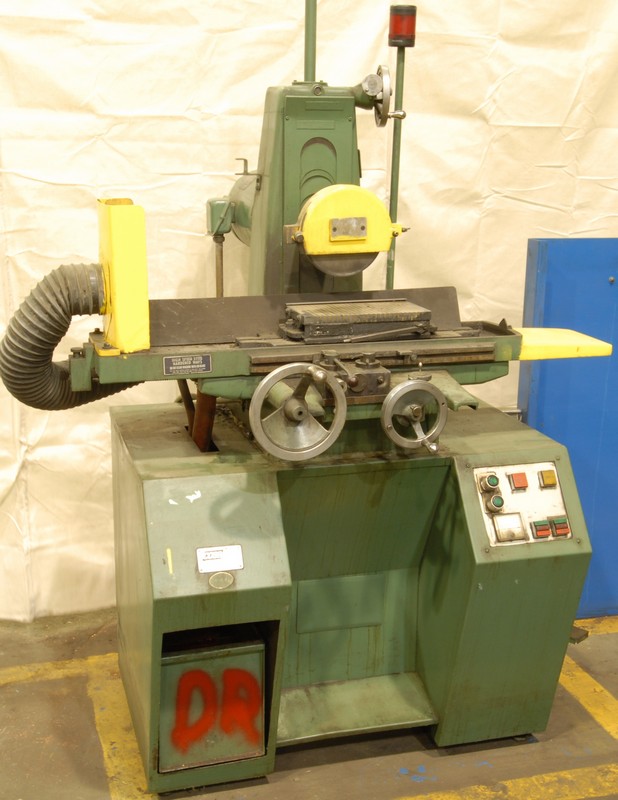

• (2) HARIG SUPER 618 hydraulic surface grinders with 6"x18" chuck, s/n n/a
• DOALL SUPER 618 hydraulic surface grinder with 7"x19" chuck, incremental down feed, FAGOR 2 axis DRO, wheel dresser, s/n n/a

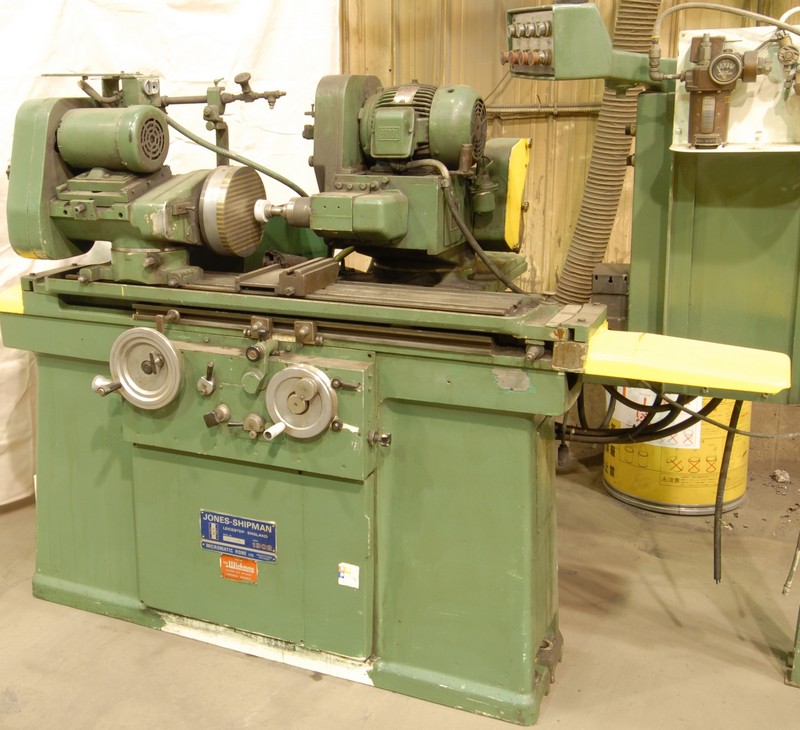

• JONES & SHIPMAN 1302 universal cylindrical grinder with 14" swing, 27" centers, 10" magnetic chuck, swivel work head, ID spindle, s/n BO77265
• GALLMEYER&LIVINGSTONE #55 hydraulic surface grinder with 12"x42" chuck, s/n n/a

FABRICATING EQUIPMENT

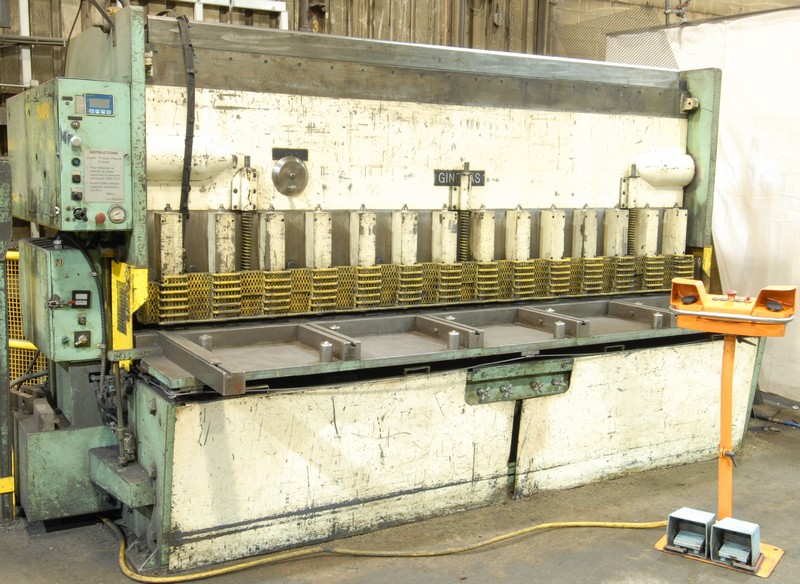

• GINGRAS 10x1/2 combination hydraulic brake and shear with .5"x10' cap, front operated single axis back gauge, s/n 89115

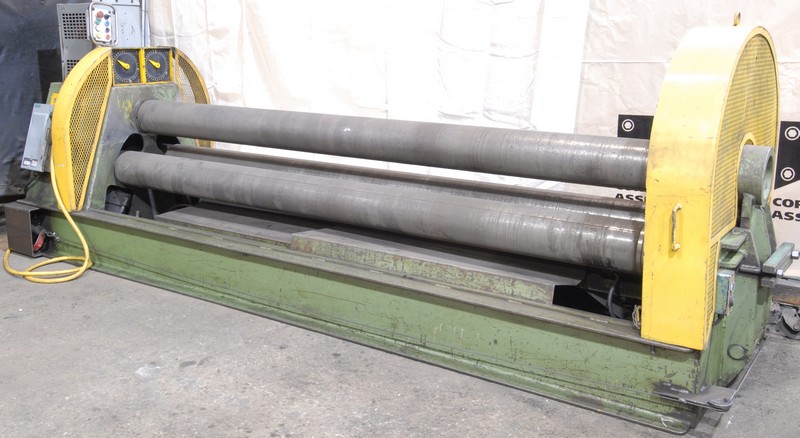

• ROUNDO PS205  hydraulic plate bending rolls with 10'x5/16" cap, pendant control, safety guards, s/n 884288

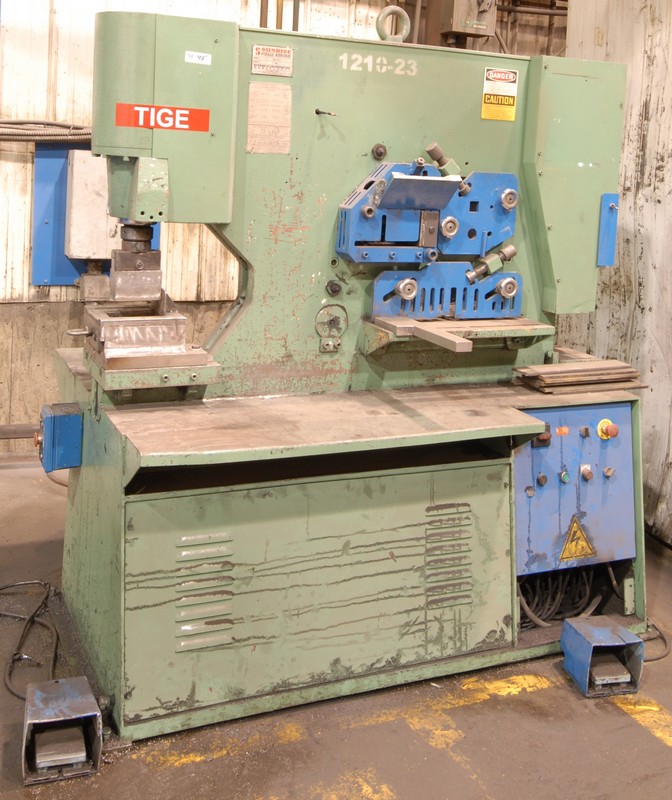

• SUNRISE (1999) 1W-77D hydraulic iron worker with 77 ton cap, 1"x1/2" punch cap, 12"x3/4" flat shearing cap, 5"x5"x1/2" angle shearing cap, 2"x3.5"x7/16" rectangular notching cap, 1.25"x1.5" square bar shearing cap, s/n 94408

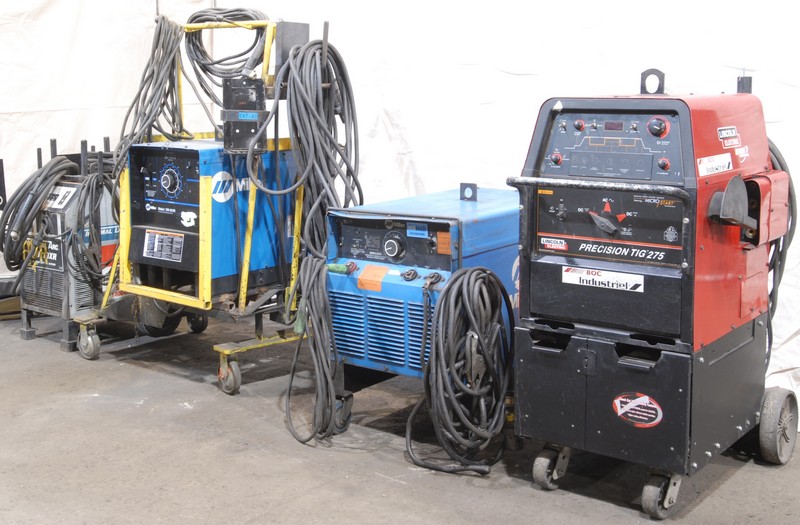

• LINCOLN ELECTRIC PRECISION TIG 275 TIG welder with cables and gun, s/n 01060504074
• MILLER SRH444 DC ARC welder with cables and gun, s/n JK584453
• MILLER DIALARC 250 AC/DC ARC welder with cables and gun, s/n LG30090HC
• THERMAL ARC PAK 10XR portable plasma cutter with cables and gun, s/n n/a
• ARVIDA CUSTOM H-frame hydraulic shop press with 100 ton cap, power elevation, s/n n/a
• (2) ARVIDA 18" abrasive cut off saws with 10 hp, s/n n/a

ROLLING STOCK

• INTERNATIONAL (2006) EAGLE 7600 tandem axle flat bed truck with 10.8 liter turbo DIESEL engine, EATON 18 SPEED transmission, 6x4, air ride suspension, 24'x8' hardwood deck, power windows, power mirrors, power locks, DE MONTE quick draw tarp, approx 330.000 km, s/n VIN 1HTWYAHT76J306853
• DODGE (2008) 5500HD flat bed truck with 6.7 liter CUMMINS turbo DIESEL engine, auto transmission, RWD, dually, 15'x8' hardwood deck, approx 143.000 km, s/n VIN 3B6WC76A78G231103
• CHEVROLET (2000) 3500HD flat bed truck with 6.5 liter DIESEL engine, auto transmission, RWD, dually, 12'x7' hardwood deck, s/n VIN 1GBJC34F6YF506028
• VALEE 4DA32TSS articulating DIESEL forklift with 35.000 lbs cap, 176" max reach, hydraulic fork spread, side shift, 4WD, solid dual tires front and rear, all terrain leveling suspension, JOHN DEERE DIESEL, full cab enclosure with heat, s/n 971D6059T2152JL01
• CLARK L500-5100 LPG forklift with 9300 lbs cap, 115" max reach, 2 stage high visibility mast, cushion tires, s/n 685-0071-6390FA

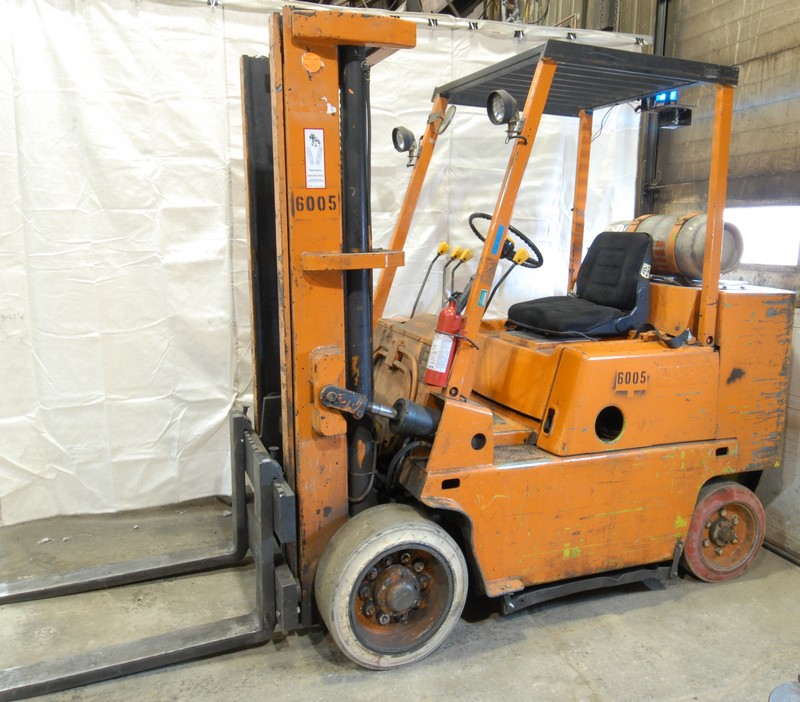

• TCM PRO-CG30 LPG forklift with 5200 lbs cap, 189" max reach, 3 stage high visibility mast, hydraulic rotator attachment, cushion tires, s/n A49P00432

MATERIAL HANDLING & FACTORY EQUIPMENT

• PRO ACTION double girder top running bridge cranes with 20 ton cap, approx 45' span, approx 19' height under the hook, s/n n/a
• (3) DEMAG single girder top running bridge cranes with 5 ton cap, approx 45' span, approx 17' height under the hook, 2 speed all directions, s/n 02520; 02521; 02522
• EPSILON FAB012 fork hook crane attachment with 4000 lbs cap, s/n n/a
• INGERSOLL RAND UP6-50PE125 50 hp rotary screw air compressor, s/n 2823U06243
• INGERSOLL RAND 30T 25 hp piston type air compressor, s/n n/a

ALSO:

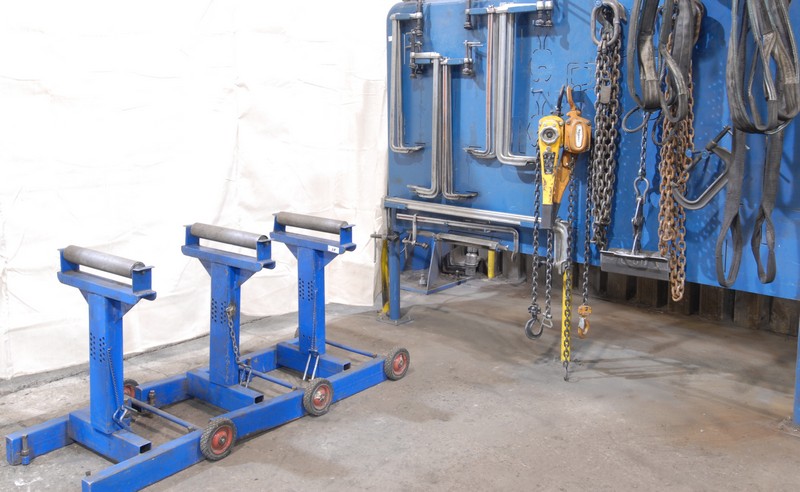

Assortment of BESSEY bar clamps, C-clamps, NEDERMAN welding fume extractors, (30+) jib cranes up to 2 ton cap, rigging and lifting supplies, tie downs, (5+) steel welding tables up to 5'x9'x2", large quantity of ENERPACK hydraulic jacks up to 150 ton cap, pedestal grinders, angle grinders, circular saws, drills, welding supplies comprising large quantity of MIG wire, ARC electrodes, TIG electrodes, welding tips and supplies, LISTA type tool cabinets, large quantity of raw materials consisting of stainless and aluminum full size sheets, assorted coil, round and square bar, tubing and channel, (30+) steel bins, (5+) self dumping hoppers, large quantity of perishable tooling including mills, drills, reamers, taps, end mills, carbide insert tooling and inserts, CAT40 and #50 taper tool holders, machine tool accessories including vises, angle plates and chucks, (3+) rolling tool boxes, huge quantity of various size WALTER zip cuts and abrasive wheels, office furniture, business machines and much more!
