Buckhorn Rubber Products Inc.
Large Rubber Injection & Rubber Compression Molding Facility
Date
Thursday, November 8, 2018
Start Time
9:30 AM CST
Inspection
Wednesday, November 7 from 9:00 A.M. to 5:00 P.M. and morning of auction to start of auction.
Removal
All items to be removed no later than Wednesday, November 21 by 5:00 P.M.
Industry
FEATURING: FARREL (REBUILT 2015 BY HF RUBBER MACHINERY) IID, heavy duty 1000HP internal rubber mixer; FARREL 84” rubber mill; FARREL 60” rubber mill; UDM CANTELIVER Batch-off system; MESNAC (2012) carbon black system; MESNAC (2012) 10 station chemical weighing system; DAVIS STANDARD 60IN60TC, 8” rubber extruder w/ 415HP drive and 24:29 ratio; NRM 4.5” rubber extruder w/ 30:29 ratio; VIKING flow through 4 wheel shot blast system w/ 15HP wheels; GEORGIA (2004) 12’ x 12’ 400F temp oven; JENSEN 6’ x 5’ 700F temp oven; DESMA (D23) rubber extruder w/ 4 station carousel; DESMA (D4) rubber extruder w/ 6 station carousel; (3) RUTIL (R27 & R28 & R32) RS4000/800, 800T vertical rubber injection presses; RUTIL (R36) RS8000/800, 600T vertical rubber injection press; RUTIL (R20) RS4000/600, 600T vertical rubber injection press; RUTIL (R16) RS6000/600, 600T vertical rubber injection press; (2) DESMA (D2 & D4) 800/900, rubber injection molding machines; LANDIS 10” x 96” cylindrical grinder; GARDNER DENVER 100HP air compressor; MARLEY AQUATOWER cooling tower; AIR PRODUCTS + CHEMICALS tumbler/freezer; (4) GEORGIA OVEN portable electric rotary ovens; HANDLING SYSTEMS INC. free standing 2 ton gantry crane system; TENNANT 7400 LPG floor scrubber; ALSO: (50+) sections of adjustable racking, spare machine parts and accessories, (10+) jib arms w/ hoists, pallet trucks, factory support equipment & MORE!
RIGGING INFORMATION
THE FOLLOWING RIGGERS WILL BE AVAILABLE FOR SERVICES AND WILL BE ON SITE BEGINNING WEDNESDAY, NOVEMBER 7. PLEASE CONTACT THEM TO DISCUSS YOUR RIGGING NEEDS.
- Creek Co. Rigging
Carl Creek
417-217-0828
creekcorigging@yahoo.com
- Northern Machinery Services
jeromy.bianchi@gmail.com
708-469-9829
- Hannibal Crane Service
George Henggeler
816-309-9398
- Seither & Cherry
Kelly Bertram
660-342-7343
RUBBER MIXING PLANT EQUIPMENT
- FARREL (REBUILT 2015) 11D heavy duty internal mixer with HFRM pneumatic hopper, drop door design mixer body, ALLEN-BRADLEY Panelview 1000 PLC control, approx. 400 LB capacity, speeds to 1500 RPM, 40 RPM rotor speed, LUFKIN T720BHH gearbox with 37.5:1 ratio, 1000 HP DC motor, SIEMENS (2005) SCR motor controller with WLII 1250H circuit breaker, FEDERAL-PACIFIC (2005) TI5G 1500 KVA/13,800V/3PH industrial transformer, WESTINGHOUSE ASL 1000 KVA/13,800V/3PH switch gear with built in transformer, s/n: 22028539 (REBUILT BY HF RUBBER MACHINERY) (COMPONENTS MAY BE SOLD SEPARATELY)
- VAUGHAN heavy duty 2 roll mill with 84” capacity, unitized base, 24” OD rolls, AKRON STEEL cross blender, stock plough, direct connected to a PHILEDELPHIA 456 HOP gearbox with 35:1 ratio, 250 HP motor, (2) STERLCO chiller units, s/n: n/a
- UDM cantilever batch-off machine with ALLEN-BRADLEY Panelview Plus 1000 PLC control, approx. 300”x26” cooling conveyor, approx. 144”x22” pullout conveyor, UMD air/water cooler, WEIGH-TRONIX 2000 LB capacity digital scale, s/n: n/a
- MESNAC (2012) carbon black system with PRO-FACE touch screen control, (6) MESNAC storage hoppers with approx. 1240 gal. capacities and built-in dust collectors, DORIGHT RT-3 air receiver tank, (3) MESNAC offload vacuum stations, s/n: n/a

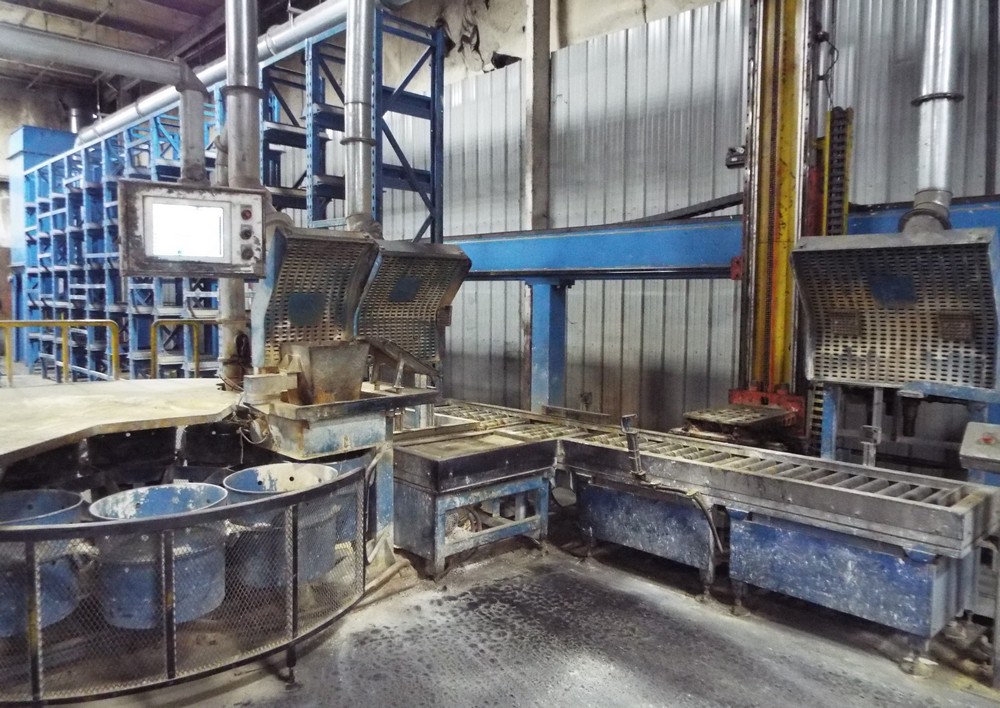

- MESNAC (2012) chemical weighing system with PRO-FACE touch screen control, 60 station chemical storage unit, automatic picker robot, 10 station weighing carrousel with METTLER TOLEDO DRO, dust collector, s/n: S-201202005
INJECTION PRESSES
- DESMA D968.630 hydraulic injection press with approx. 700 ton capacity, 3.75 gal. shot capacity, 3” diameter feed screw, 55 HP, DESMA ADVANTECH HMI PLC control (NEW IN 2017), s/n: 800974

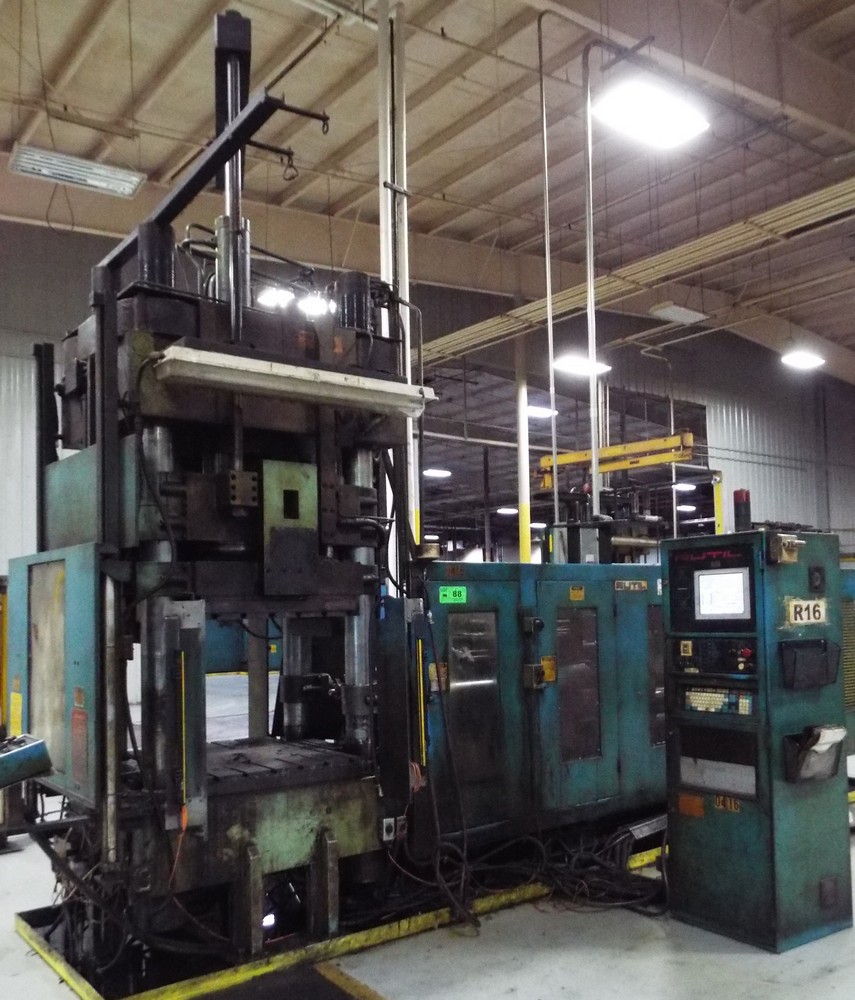

- (2) RUTIL RS 4000/800 vertical hydraulic injection press with 800 ton capacity, 48” stroke, 15” daylight, 38”x32” platens, 2” diameter feed screw, 50 HP, RUTIL PLC control, s/n: 131/204, 131/212
- RUTIL RS 4000/800 hydraulic injection press with 800 ton capacity, 18” stroke, 16” daylight, 48”x32” platens, 2” diameter feed screw, 50 HP, RUTIL PLC control, safety light curtains, s/n: 127/312
- RUTIL RS 8000/600 INL hydraulic injection press with 600 ton capacity, 16” stroke, 38”x32” platens, 2.3” diameter feed screw, 50 HP, RUTIL PLC control, safety light curtains, s/n: 127/319
- RUTIL RS 4000/600 INL hydraulic injection press with 600 ton capacity, 18” stroke, 16” daylight, 38”x32” platens, 50 HP, RUTIL PLC control, safety light curtains, ½ ton jib arm and hoist, s/n: 127/305
- RUTIL RS 6000/600 INL hydraulic injection press with 600 ton capacity, 18” stroke, 16” daylight, 38”x32” platens, 50 HP, RUTIL PLC control, safety light curtains, s/n: 127/301
EXTRUSION AND INJECTION MOLDING MACHINES
- (2) DESMA SERIES 800/900 extrusion screw injection molding machine with approx. 500 ton capacity, DESMA 6 station rotary injection press with 20”x18” platens, ALLEN-BRADLEY Panelview Plus 1000 touch screen control, s/n: n/a
- DESMA SERIES 800/900 extrusion screw injection molding machine with approx. 500 ton capacity, DESMA 4 station rotary injection press with 23”x17” platens, ALLEN-BRADLEY Panelview Plus 1000 touch screen control, s/n: n/a

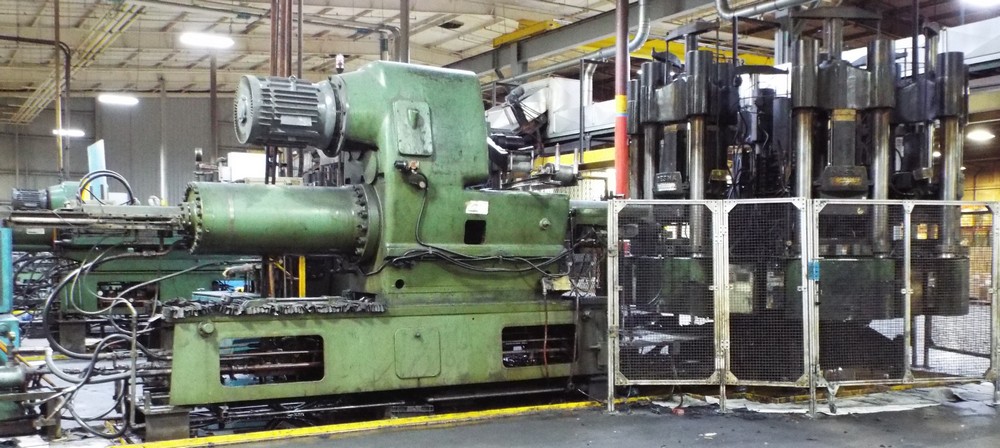

- DAVIS-STANDARD 12/1 LD cold feed rubber extruder with 8” capacity, 60IN60TC gearbox with 24.29 ratio and 415 HP, 250 HP DC motor with MaxPak SCR controller, base-mounted hot oil heating system for barrel jacket with 600 deg. F. max. temperature, 72 RPM screw speed, s/n: S4868
- NRM cold feed rubber extruder (12/1 LD NEW 1972) with 4.5” capacity, 100 HP DC motor with QUANTUM 111 SCR controller, 30.29.1 gear ratio, BUDZAR base-mounted hot oil heating unit, STERLCO chiller unit, GE 145 KVA/460HV-266LV/3 PH drive isolation transformer, s/n: 31045
- FARREL 2 roll mill with 60” capacity, 22” OD rolls with 1.25:1 friction ratio, unitized base connected to a WESTERN GEAR OD60M gearbox, RELIANCE ELECTRIC motor, s/n: n/a
- LANDIS 10X96 cylindrical grinder with 10” swing over table, 96” between centers, 28” diameter wheel, 3” max. face width, 15 HP wheelhead motor, POLARIS PSK1440 3HP dust collector, s/n: n/a
MOLD PRESSES
- SIEMPLEKAMP hydraulic mold press with 60”x54” electric heated platens, s/n: n/a
- PARMACO hydraulic mold press with 42”x42” electric heated platens, 40 HP, s/n: n/a
- ADAMSON hydraulic mold press with 24”x24” electric heated platens, approx. 40 HP, ALLEN-BRADLEY Panelview C200 control, s/n: n/a
- JINGDAY hydraulic mold press with 72”x72” electric heated platens, roll-out bottom platen, ALLEN-BRADLEY Panelview Plus 600 PLC control, safety light curtains, s/n: n/a (NON-FUNCTIONAL)
- (3) GLUCO VS50 mold presses with 20”x18” electric heated platens, 15 HP, s/n: 96639, n/a, n/a
FINISHING EQUIPMENT
- VIKING finishing system with VIKING 4 wheel through-type shot blast tunnel (RETROFIT BY WHEELABRATOR) with approx. 3 CU/FT capacity, 15 HP; VIKING through-type wash tunnel with 41”x21” opening, approx. 250” tunnel length, (2) wash/rinse tanks; (2) MFG. UNKNOWN blow off stations; overhead chain conveyor system, s/n: n/a
- IFS finishing system with IFS coating tank with diaphragm pumps & controls; NORTHERN MECHANICAL natural gas cure oven with 400,000 BTU/HR; overhead chain conveyor system, s/n: n/a
- AIR PRODUCTS & CHEMICALS PRO FREEZER cooling tumbler with -300 deg. F min. temperature, TOSHIBA VF-57 VFD, PROCESS ENGINEERING liquid nitrogen outdoor storage tank, s/n: n/a
- MFG. UNKOWN portable de-flashing tumbler with bucket elevator and DAYTON DC speed control, s/n: n/a
OVENS
- GEORGIA OVEN (2004) walk-in mechanical convection oven with 400 deg. F max. temperature, 144”x144” box, touch screen control, s/n: CTS1404008
- JENSEN natural gas curing oven with 700 deg. F max. temperature, 1500 CFH, dual curing chambers 88”x64”x80” and 48”x64”x80” dimensions, s/n: 6314
- MFG. UNKOWN walk-in batch oven with 450 deg. F max. temperature, 72”x103”x89” box, s/n: n/a DC-9165
- SPX BLUE-M DC-206-G-ST350 portable industrial laboratory oven with 662 deg. F max. temperature, s/n: DC-8562
- (4) GEORGIA OVEN 4 tier portable electric industrial rotary ovens with EZ TOUCH touch screen controls
FACTORY SUPPORT EQUIPMENT
- GARDNER-DENVER 100 HP skid mounted rotary screw air compressor with 12,839.0 hrs displayed at time of recording, s/n: n/a
- MARLEY AQUATOWER outdoor cooling tower, s/n: 85611-11B221584/4871
- HAZ-STOR hazardous material storage locker with 22.5’x6’x8’H dimensions, ANSUL fire suppression system, climate control unit, s/n: n/a
- TENNANT 7400 LPG ride-on floor scrubber with new rear squeegee assembly (INSTALLED 2018), s/n: 7400-4608
MATERIAL HANDLING

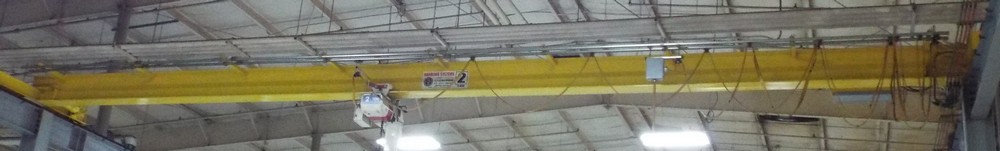

- HANDLING SYSTEMS INC free standing crane system with HANDLING SYSTEMS 2 ton single girder top running bridge crane with COFFING 2 ton electric hoist, 42.5’ span, approx. 16’ under hook, approx. 60’ free standing bolt-together runway and columns with bus bar, s/n: n/a
- UNESCO free standing crane system with UNESCO 2 ton single girder underslung bridge crane with COFFING 2 ton electric hoist, approx. 24’ span, approx. 24’ under hook, approx. 48’ free standing bolt-together runway and columns with bus bar, s/n: n/a
- MFG. UNKOWN free standing crane system with 4000 LB single girder underslung crane with COFFING JLC 2 ton electric hoist, 14’ span, welded and bolted free standing gantry with approx. 26’ run, 12’ height
- (2) GORBEL free standing jib arms with ½ ton capacity, INGERSOL-RAND ¼ ton capacity pneumatic hoists
- (2) CONCO wall-mount jib arms with ½ ton capacity, BUDGIT ¼ ton capacity electric hoists
- (2) JUNGHEINRICH EJE 120 electric pallet trucks with 4500 LB. capacity, FERRO 24V battery chargers
ALSO:
(50+) sections of medium duty pallet racking; HUGE QUANTITY of spare parts including electric motors, drives, feed screws, platens, DESMA components, press stations, hydraulic power packs, control panels, transmission and clutch parts and MUCH MORE!
