Surplus to the Ongoing Needs of

SMTCL Canada Inc.

Brand New Machine Tool Event!



Date

Thursday, February 18, 2016

Start Time

1:30 PM EST

Inspection

Wednesday, February 17 from 9 AM to PM and morning of auction to start of auction.

Removal

Small items: Friday, February 19 by 5 PM
Remaining items: Friday, March 4 by 5 PM

Location

2783 Portland Drive, Oakville, Ontario, Canada, L6H 6M6

Industry

Machining





MULTI-MILLION DOLLAR O.E.M. DEALER STOCK INVENTORY CLEARANCE EVENT FEATURING: SMTCL AH110 CNC 4.33" table type horizontal boring mill (BRAND NEW & never used); SMTCL (2011) VTC 3240 CNC vertical turning center with 12.5" x 15.75" capacity, FANUC CNC control (BRAND NEW in OEM crating); SMTCL (2014) HTC 2050i CNC turning & live milling center with 7.85" x 19.60" capacity, FANUC CNC control (BRAND NEW in OEM crating); SMTCL (2011) HTC 50100n CNC turning & live milling center with 19.60" x 39.25" capacity, FANUC CNC control (BRAND NEW in OEM crating); (2) SMTCL (2014) VIVA T2C/500 CNC turning & live milling centers with 11" x 19.60" capacity, FANUC CNC control (BRAND NEW in OEM crating); FEDEK (2010) DH65LS2 CNC automatic bar feeder; (2) AMADA WASINO (2011) G-06 CNC gang-type turning centers with gantry loading robots; SMTCL VMC 0656e CNC 5 axis vertical machining center with FIDIA CNC control  (BRAND NEW in OEM crating); (2) SMTCL (2010) VMC 850B CNC vertical machining centers with FANUC CNC control, 39.25" x 19.60" table, 8000 RPM (BRAND NEW in OEM crating); SMTCL (2013) VMC 1600B CNC vertical machining center with FANUC CNC control, 66.90" x 31.50" table (BRAND NEW never used); SMTCL (2008) HMC 50 CNC twin pallet vertical machining center with FANUC CNC control, 19.60" x 19.60" pallets (BRAND NEW never used); (2) SMTCL (2012) SI-262A dual chuck hollow spindle oil field lathes with 35.40" x 118.10" capacity, 14" spindle bore (BRAND NEW never used); SMTCL (2012) SI-245B dual chuck hollow spindle oil field lathe (BRAND NEW never used); (2) SMTCL (NOV 2007) CAK63285d CNC flatbed lathes with 24.80" x 118.10" capacity, FANUC CNC control  (BRAND NEW in OEM crating); CY (2015) K800B CNC flatbed lathe with 31.50" x 118.10" capacity, FAGOR CNC control (BRAND NEW in OEM crating); CY (2015) K510N CNC flatbed lathe with 20" x 78.75" capacity, FAGOR CNC control (BRAND NEW in OEM crating); JIR (2012) MDS-0S vertical turret milling machine with power feed (BRAND NEW in OEM crating); DOOSAN (2007) G50SC-5 heavy duty 11,000 LBS capacity LPG forklift; LARGE QTY of BRAND NEW - NEVER USED machine tool accessories including hydraulic and conventional chucks, tool holders, turning tools and machine vises; large qty of spare parts and OEM accessories and MUCH MORE!

CNC VERTICAL LATHE

  • SMTCL (2008) GTC250110 (TAC-20) CNC vertical lathe with FANUC 18i CNC control, 98.42" swing, 78.74" diameter table, 98.42" max turning diameter, 78.74" max turning height, travels X-110.23", Z-47.24", speeds to 180 RPM, 60/75 HP, 10,000 Kg max table capacity, 12 station ATC, tool measuring device, coolant, chip conveyor, s/n A20900062 (BRAND NEW IN OEM SHIPPING CRATES)

TABLE TYPE CNC HORIZONTAL BORING MILLS

  • (2) SMTCL (2014) AH110 CNC table type horizontal boring mills with AH CNC control, 4.33" spindle, 49" x 43.3" table, travels X-62.99", Y-47.24", Z-55.11", W-23.62", U-7.87", # 50 spindle taper, speeds to 1100 RPM, 20 HP, 5000 Kg max table capacity, coolant, s/n 271400001; ZT1300005  (BRAND NEW NEVER USED)

CNC VERTICAL TURNING CENTER

  • SMTCL (2011) VTC 3240 CNC vertical turning center with FANUC 0iTD CNC control, 19.68" swing, 15.75" max turning height, 12.60" max turning diameter, travels X-11.81", Z-17.71", speeds to 2500 RPM, 25 HP, 8 station turret, coolant, chip tray, s/n A11110001 (BRAND NEW ON OEM SHIPPING SKID)

CNC HORIZONTAL TURNING CENTERS

  • SMTCL (2011) HTC 50100n CNC turning center with FANUC 0iTD CNC control, 27.55" swing, 39.37" max cutting length, 19.68" max cutting diameter, travels X-10.62", Z-43.30", speeds to 3000 RPM, 4.09" spindle bore, 3.14" max bar capacity, 8 station turret, coolant, chip tray, s/n A11100022 (BRAND NEW ON OEM SHIPPING SKID)
  • SMTCL (2015) VIVA T2 Sm CNC turning and milling center with FANUC 0i MATE-TD CNC control 22.04" swing, 12.59" max turning diameter, 19.29" max turning length, travels X-7.87", Z-22.04", 10" chuck, 3.14" spindle bore, 2.59" max bar capacity, speeds to 4000 RPM, 20 HP, 8 station turret, live milling, coolant, chip conveyor, s/n A11400274 (BRAND NEW ON OEM SHIPPING SKIDS)
  • SMTCL (2014) VIVA T2C/500 CNC turning center with FANUC 0i MATE-TD CNC control 22.04" swing, 11.02" max turning diameter, 19.68" max turning length, travels X-7.87", Z-22.04", 8" chuck, 2.55" spindle bore, 1.96" max bar capacity, speeds to 4500 RPM, 15 HP, 8 station turret, coolant, chip conveyor, s/n A11400274 (BRAND NEW ON OEM SHIPPING SKIDS)
  • FEDEK (2010) DH65LS2 CNC automatic bar feeder, s/n 14067393 (BRAND NEW NEVER USED)
  • (2) AMADA (12/2011) WASINO G06 gang type CNC high precision machining cell with FANUC 21i-TB CNC control, 11.22” swing, 2.36” max turning length, travels X-11.81” Z-11.22”, 5.25” chuck, 1.75” spindle bore, speeds to 8000 rpm infinitely variable, 3.75 hp, 4 station gang type tool post, coolant, AMADA S.ROBO-1 3-axis high speed CNC gantry loading robot with 6.6 lbs max cap, travels Y-17.75” B-59.25” C-90°, AMADA pallet stocker with 9 (12) cavity pallets, s/n 3236; 3228 (VERY LOW DEMO HOURS ON SHIPPING SKIDS)
  • SPINNER PD-CNC 4-axis gang type ultra precision CNC machining cell with SIEMENS 840D SINUMERIK control, 12” swing, 13.8” max turning length, travels X-15.75” Z-15.75” Q- 15.75” C- 360°, 5.5” main spindle chuck, 4.92” sub spindle chuck 1.25” spindle bore, speeds to 8000 rpm main spindle, 8000 rpm sub spindle, 10 hp main spindle, 7.25 hp sub spindle, 10 station gang type tool posts, coolant, SPINNER PL400 3-axis high speed CNC gantry loading robot, pallet stocker, s/n 91298 (ON SHIPPING SKID)
  • (3) BENZINGER TNL gang type CNC precision turning center with SIEMENS 810 SINUMERIK CNC control, 8.66” swing, 3.96” max turning length, travels X-5.11” Z-13.66”, 4” chuck, 1.37” spindle bore, speeds to 7000 rpm infinitely variable, 8.75 hp, 4 station gang type tool post, coolant, sliding inspection microscope, s/n 98-300-001; 95-300-001; n/a

CNC LATHES

  • SMTCL (2007) CAK63285d CNC flat bed lathe with FANUC 0i MATE-TC CNC control 24.80" swing, 16.14" max turning diameter, 112.20" max turning length, 12" hydraulic chuck, 4.09" spindle bore, speeds to 1000 RPM, 15 HP, 8 station turret, coolant, chip tray, steady rest, follow rest, s/n A30700517 (BRAND NEW ON OEM SHIPPING SKID)

5 AXIS GANTRY TYPE CNC VERTICAL MACHINING CENTER

  • SMTCL (2013) VMC 0656e gantry type CNC 5 axis vertical machining center with FIDIA CNC control, 15.74" diameter table, travels X-23.62", Y-19.68", Z-17.71", A- ±115°, C-360° @ 33.3 max RPM, CAT 40 spindle taper, speeds to 8000 RPM, 20 station ATC, coolant, chip tray, s/n n/a  (BRAND NEW ON OEM SHIPPING SKID)

CNC VERTICAL MACHINING CENTERS

  • (2) SMTCL (2013) VMC 1600B CNC vertical machining centers with FANUC 0i MD CNC control, 66.92" x 31.49" table, travels X-62.99", Y-31.49", Z-31.49", speeds to  8000 RPM, 15 HP, CAT 50 spindle taper, 24 station ATC, thru spindle coolant, chip conveyor, s/n B31300006; B31200021 (BRAND NEW)
  • (2) SMTCL (2010) VMC 850B CNC vertical machining centers with FANUC 0i MD CNC control, 39.25" x 19.60" table, travels X-33.46", Y-20.07", Z-21.25", speeds to  8000 RPM, BT40 spindle taper, 24 station ATC, 4th axis ready, coolant, chip conveyor, s/n B31000006; B31000027  (BRAND NEW ON OEM SHIPPING SKID)

CNC TWIN PALLET HORIZONTAL MACHINING CENTER

  • SMTCL (2008) HMC 50 CNC twin pallet horizontal machining center with FANUC 0i MC CNC control, 19.68" x 19.68" pallets, travels X-27.55", Y-25.59", Z-23.62", B-360º x 1° increment, speeds to  5000 RPM, CAT 50 spindle taper, 40 station ATC, 500 Kg max table capacity, coolant, chip conveyor, s/n B10800002 (BRAND NEW NEVER USED)

CONVENTIONAL MACHINE TOOLS

  • (3) SMTCL (2012) S1-262A dual chuck hollow spindle pipe threading engine lathes with 35.40" swing, 118.11" distance between centers, 31" front & rear 4-jaw chucks, 14" spindle bore, speeds to 301 RPM, 25 HP, coolant, chip trays, steady rest, follow rest, in/mm threading, s/n A51200158; A50800051; A51200164 (BRAND NEW ON OEM SHIPPING SKIDS)
  • SMTCL (2012) SI-245B dual chuck hollow spindle pipe threading engine lathe with 15.75" swing, 59" distance between centers, 31" front & rear 4-jaw chucks, 9.44" spindle bore, speeds to 306 RPM, 25 HP, coolant, chip trays, steady rest, follow rest, in/mm threading, s/n A51012036 (BRAND NEW ON OEM SHIPPING SKID)
  • SMTCL (DEC-2009) CA6250B/1500 conventional gap bed engine lathe with 19.68" swing over bed, 28.34" swing in the gap, 59" distance between centers, 10" chuck, 3.14" spindle bore, speeds to 1400 RPM, coolant, chip trays, steady rest, follow rest, in/mm threading, s/n A40903954 (BRAND NEW ON OEM SHIPPING SKID)
  • SMTCL (2010) Z3032X10/I 2' radial arm drill with box table, s/n 10063734
  • JIR (2012) MDS-0S vertical turret milling machine with power feed, s/n 12070001 (BRAND NEW ON OEM SHIPPING SKID)

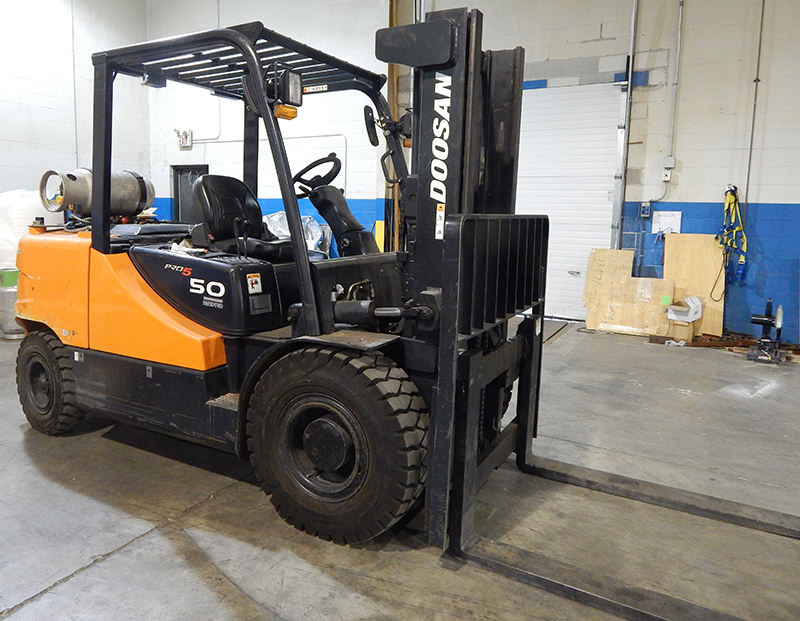

  • DOOSAN (2007) G50SC-5 heavy duty 11,000 lbs LPG forklift with 118" max vertical reach, outdoor pneumatic tires, ONLY 491 hours on meter, s/n N7-00111

ALSO:

LARGE QTY of BRAND NEW - NEVER USED machine tool accessories including hydraulic and conventional chucks, tool holders, turning tools and machine vises; large qty of spare parts and OEM accessories and MUCH, MUCH MORE!

ALSO FEATURING:

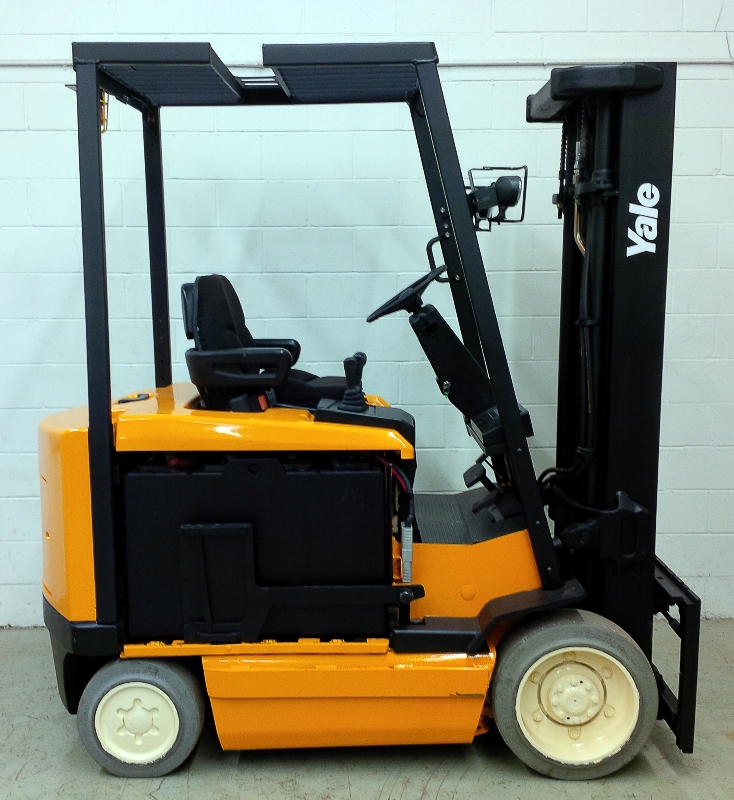

  • YALE (2004) ERC060RGN36TE088 electric fork lift truck with 6000 ls. capacity, 88” / 162” mast, side shift, 54” forks, non marking tires, 36 volt attery, 36 volt charger, s/n E108V19277

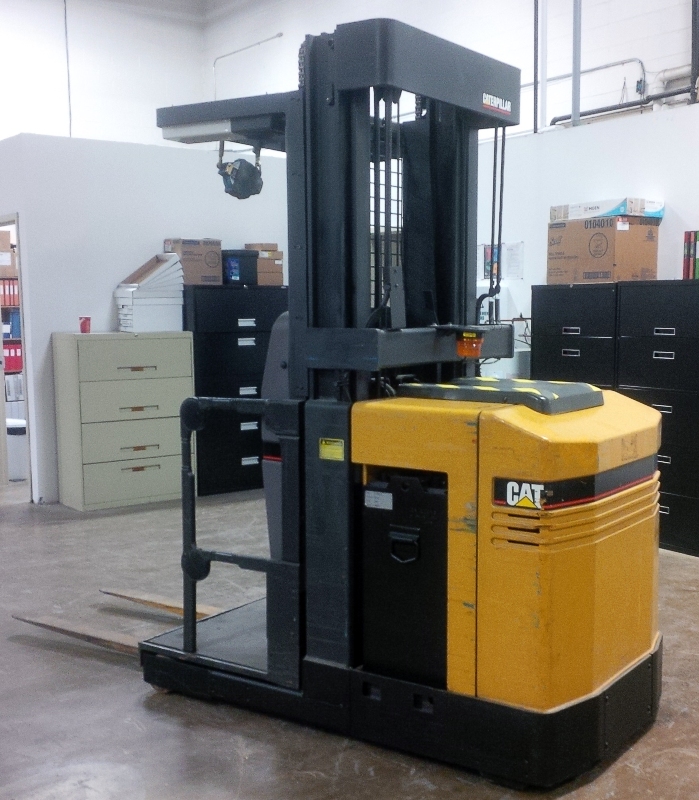

  • CATERPILLAR (1999) NOR30P order picker with&nsp;3000 ls capacity, 95” / 204” mast, 42” forks, 24 volt attery, 24 volt Exide charger s/n 2ML03268

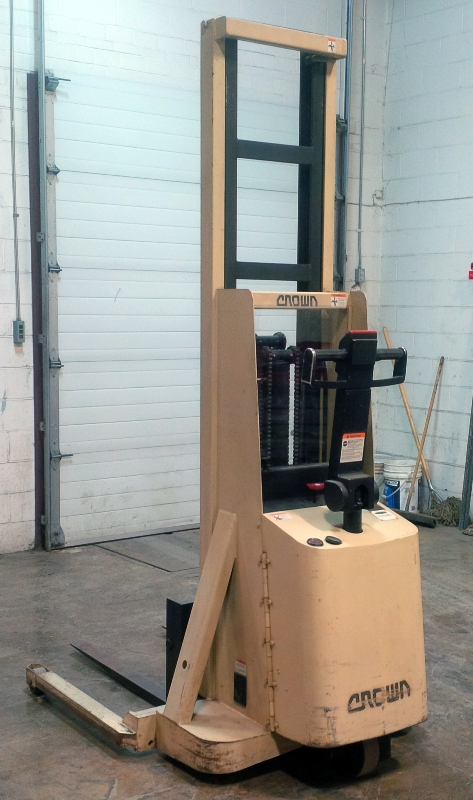

  • CROWN (2000) 20MT electric stacker with 2000 ls. capacity, 104” / 154” mast, 42” forks, uilt in attery pack with charger, s/n n/a

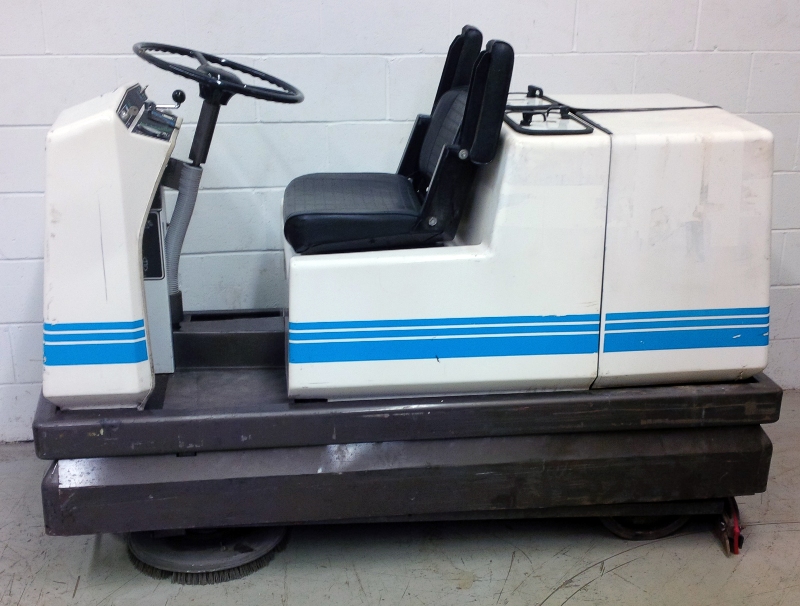

  • HYDRODYNE S33 scruer with 24 volt attery, 24 volt charger s/n 86822
  • DOOSAN (2007) G50SC-5 heavy duty 11,000 lbs LPG forklift with 118" max vertical reach, outdoor pneumatic tires, ONLY 491 hours on meter, s/n N7-00111
