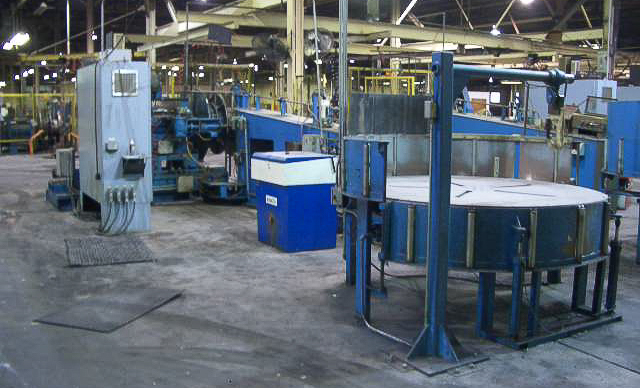

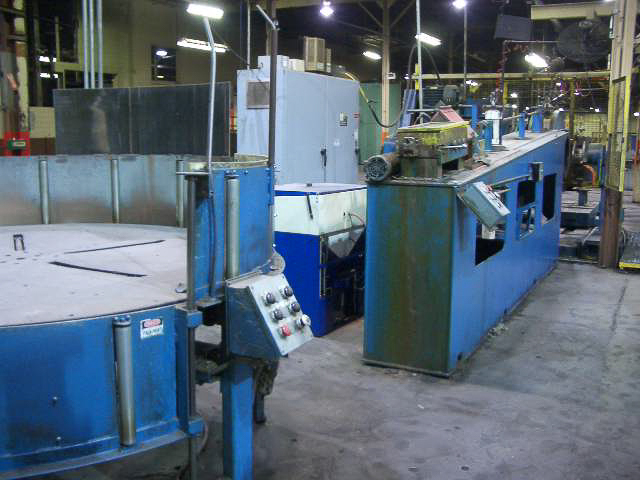

VAUGHN 2308 Tube Level Wind Line
$25,000
SPECIFICATIONS:
Serial Number: NA
FEATURES:
MANUFACTURER: VAUGHN MACHINERY CORP
TYPE: TUBE LEVEL WIND LINE
CAPACITY
MAXIMUM TUBE O.D. - 5/8" (16mm) O.D.
MINIMUM TUBE O.D. - 1/4" (6.35mm) O.D.
LINE SPEED - 0 - 500 FPM (152 m/MIN.)

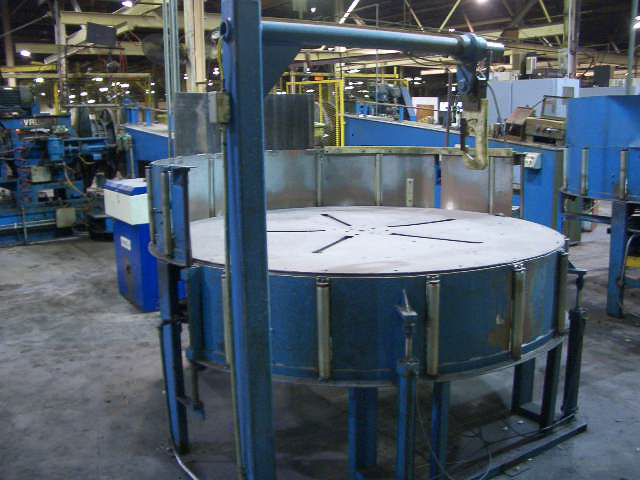

COIL PAYOFF
TYPE - VERTICAL
MAXIMUM COIL O.D. - 7 FT.
COIL I.D. RANGE - 14"- 52" (355mm- 1320mm) I.D.
EQUIPPED WITH DE-TANGLER
ENTRY COIL GUIDE

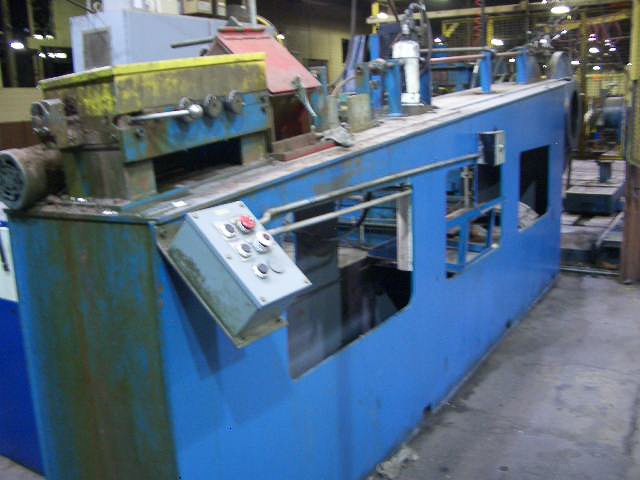

ROLL STRAIGHTENER
TYPE - SINGLE PLANE DRIVE
No. OF ROLLS - 7
ROLL DIAMETER - 3" (76mm) DIA.
ROLL FACE - 1" (25mm)
CONFIGURATION - VERTICAL
DRIVE MOTOR - 1 HP, 208-230/460 VOLTS, 3.1/3.4 AMPS, 1725 RPM, 3 PHASE, 60 HERTZ
TUBE CLEANING STATION
TYPE - SYSTEM ONE CLEAN FILTER & RECIRCULATING SYSTEM
MAGNETIC ANALYSIS TEST STATION
TESTER TO BE SUPPLIED BY PURCHASER
TUBE GUIDE: 7 FT. (2m) LONG

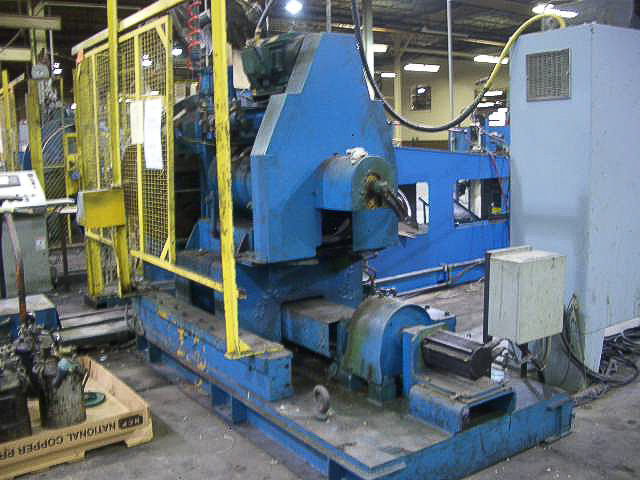

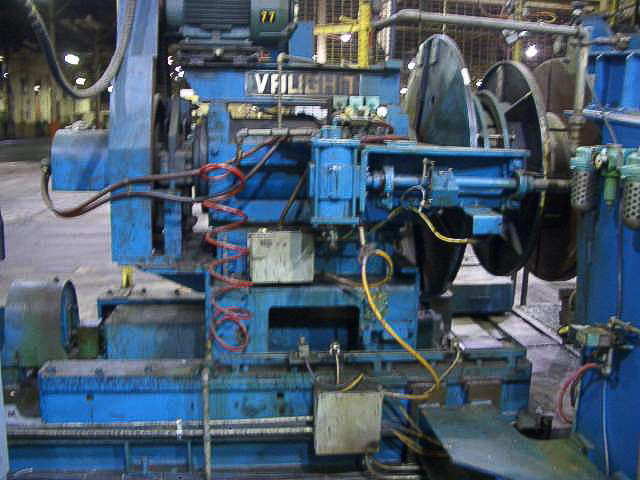

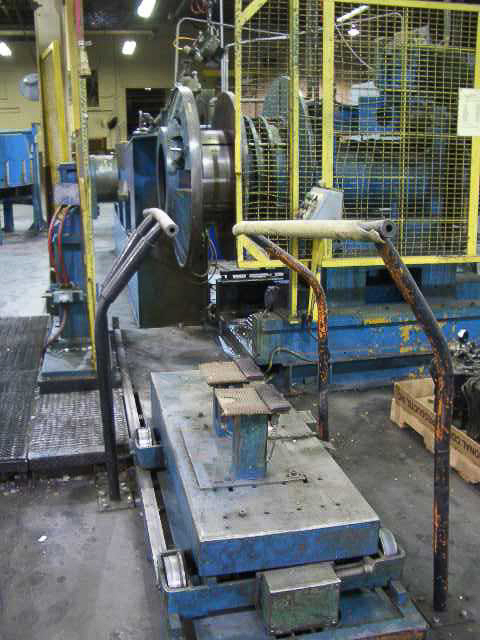

TRAVERSING WINDER
MANUFACTURER - VAUGHN MACHINERY CORP.
SPOOL SIZE - 26" I.D. x 44" O.D. x 9 3/4" TRAVERSE
(660mm I.D. x 1117mm O.D. x 248mm TRAVERSE)
WINDER DRIVE - 30 HP, 1735 RPM, 230/460 VOLTS, 3 PHASE, 60 HERTZ, VARIABLE SPEED
CONTROLS - ALLEN BRADLEY SCR THYRISTOR DRIVE MODEL 1305 W/ALLEN BRADLEY MODEL 1394 DIGITAL SERVO CONTROLLER
TYPE TRAVERSE - MOTORIZED

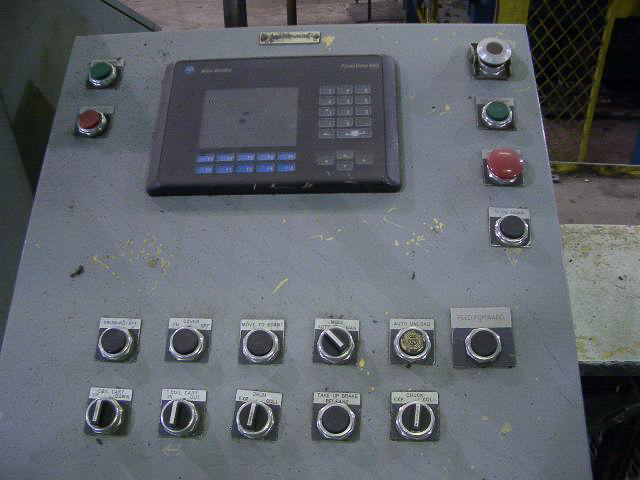

OPERATOR STATION - ALLEN BRADLEY PANELVIEW 600 TOUCH SCREEN
